Field Drydown of Mature Corn Grain

R.L. (Bob) Nielsen
Agronomy Dept., Purdue Univ.
West Lafayette, IN 47907-2054
Email address: rnielsen at purdue.edu
Twitter: @PurdueCornGuy



Delayed maturity of corn due to late planting or simply cool growing seasons often translates into delayed or slow drydown of mature corn grain prior to harvest and, consequently, higher than desired grain moisture contents at harvest. Wetter grain at harvest increases the need for artificially drying the grain after harvest which, in turn, increases the growers' production costs and can delay the progress of harvest itself. Conversely, an early or rapid drydown of the crop decreases growers' costs and facilitates early or at least timely harvest of the crop prior to the colder and, often, wetter conditions of late fall. At the moment, the 2018 end of season is shaping up to look like the latter situation, with earlier than normal grain maturation and warmer than normal temperatures from late August through mid-September.

Kernel moisture content decreases as the kernels develop through the blister stage (~ 85% moisture), milk stage (~ 80% moisture), dough stage (~ 70% moisture), dent stage (~ 60% moisture), and finally physiological maturity (~ 30% moisture). Prior to physiological maturity, decreases in kernel moisture occur from a combination of actual water loss (evaporation) from the kernel plus the continued accumulation of kernel dry matter via the grain filling process. After physiological maturity (identified by presence of the kernel black layer), percent kernel moisture continues to decrease primarily due to water loss from the kernel.

Weather & Timing of Grain Maturation

Grain moisture loss in the field occurs at a fairly linear rate within a range of grain moisture content from about 40 percent down to 15 to 20 percent, and then tapers off to little or no additional moisture loss after that. The exact rate of field drying varies among hybrids and years. Figure 1 illustrates changes in grain moisture content over time for an adapted medium maturity hybrid in two years with different temperature patterns following physiological maturity.

Click on an image to open a larger version. To close the popup window, click on the larger image.

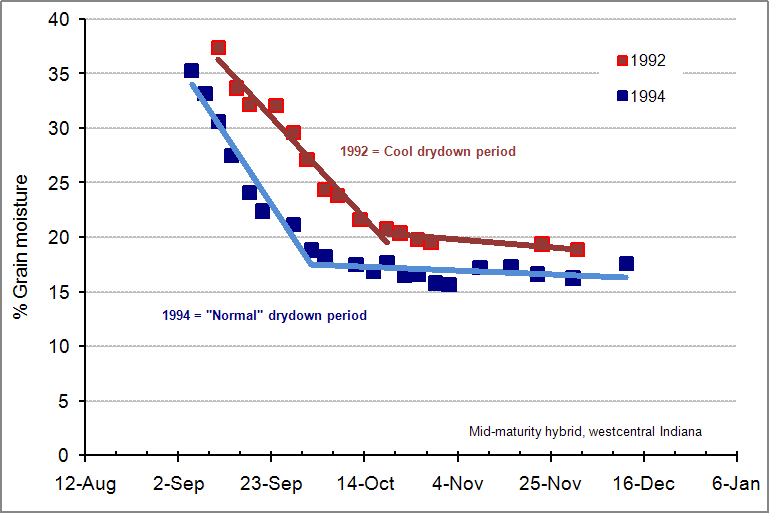

GMC, 1992 v 1994
Fig. 1. Example of field drying progress for a
medium maturity corn hybrid in 2 years
experiencing different temperature patterns.

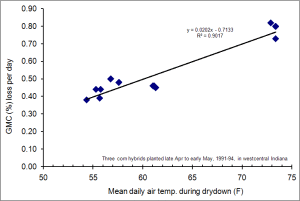

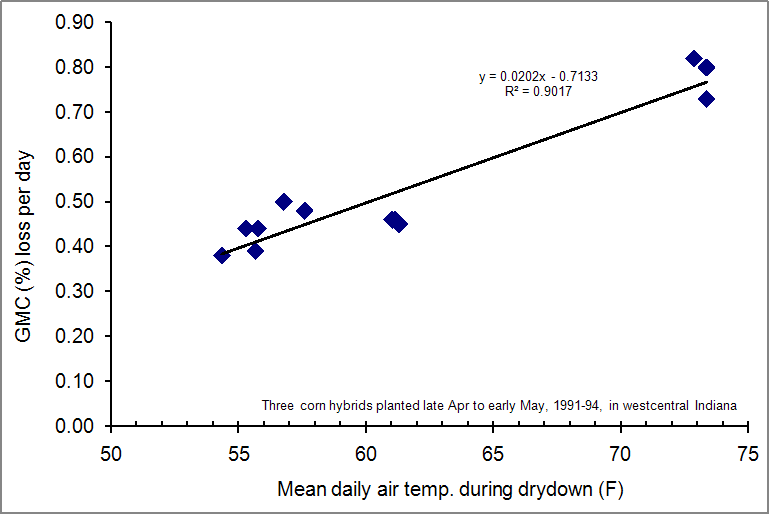

GMC Changes vs Mean Temperature
Fig. 2. Average daily grain moisture loss
(percentage points/day) relative to average
daily air temperature during the drydown
period for three corn hybrids planted late
April to early May, 1991-1994, westcentral
Indiana.

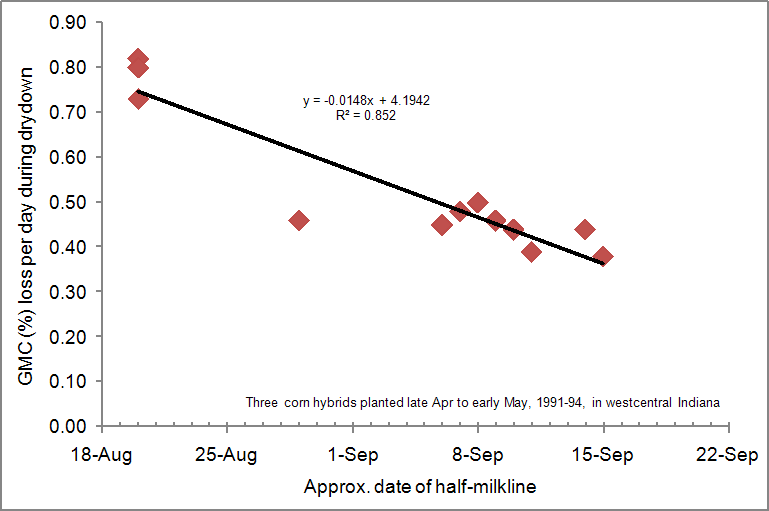

GMC loss per day at halfML
Fig. 3. Relationship between field drying rate
and the date at which the grain nears maturity
(half-milkline) for three corn hybrids planted
late April to early May, 1991-1994,
westcentral Indiana.

Field drying of mature corn grain is influenced primarily by weather factors, especially temperature, humidity, and rainfall. Simply put, warmer temperatures and lower humidity encourage rapid field drying of corn grain. Figure 2 illustrates the positive relationship between the average daily temperature and the average daily rate of field drying OVER THE ENTIRE DRYDOWN PERIOD.

Because grain drydown rates are greater when the drydown period is warmer, it stands to reason that a corn crop that matures in late August will dry down faster than one that matures in mid-September. In fact, there is a close relationship between the date when the grain nears physiological maturity (half-milkline or 2 to 3 weeks prior to kernel blacklayer) and the subsequent average daily drydown rate. Daily drydown rates AVERAGED OVER THE ENTIRE DRYDOWN PERIOD will range from about 0.8 percentage point per day for grain that nears maturity in late August to about 0.4 percentage point per day for grain that nears maturity in mid- to late September (Fig 3).

Bear in mind that grain moisture loss for any particular day may be quite high or low depending on the exact temperature, humidity, sunshine, or rain conditions that day. It is not uncommon for grain moisture to decline more than one percentage point per day over a period of days when conditions are warm, sunny, windy and dry. In contrast, there may be zero drydown of grain on cool, cloudy, rainy days.

Weather-Related Crop Stress and Field Drydown of Grain

Farmers often question whether field drydown will occur "normally" after some severe weather-related stress damages the crop prior to physiological maturity or causes premature death of the plants. Examples of such weather stress include damage caused by severe drought plus heat, late-season hail storms, and frost or killing freeze events prior to physiological maturity.

The answer in all cases to whether grain drydown will occur "normally" is essentially "yes", but this requires a bit of explanation.

Lingering severe stress such as drought or foliar disease (e.g., gray leaf spot) that occurs during the latter stages of the grain filling period can cause premature death of entire plants, smaller than normal kernels, AND premature formation of kernel black layer. The latter two factors usually result in earlier than expected drydown of the grain and ultimately grain moisture content in severely affected areas of a field much drier at harvest than lesser affected areas. The fact that grain drydown of "prematurely mature" grain begins earlier on the calendar usually means it occurs in relatively warmer time periods and so grain drydown rates per day are higher than would be expected if the grain had matured "normally" at a later date. However, the rate of grain drydown is "normal" for the time period during which the grain is drying.

NOTE: When areas of fields die prematurely due to stresses like drought, spatial variability for grain moisture at harvest can be dramatic and often creates challenges with the management of the grain dryer operation. This is especially true early in the harvest season when grain moistures of healthier areas of the field are in the low 20's. The spatial variability for grain moisture decreases later in the harvest season as grain moistures throughout the field settle to an equilibrium level (15% or less).

The effects of a sudden single stress event like hail or lethal cold temperatures prior to physiological maturity often create an optical illusion of sorts relative to subsequent field drying of the grain. Because leaf or plant death of an immature crop may occur quite rapidly in response to severe hail damage or lethal frost / freeze events, the moisture content of the yet immature grain will "appear" to be quite high given that the appearance of the now dead plants would seem to suggest the crop was "mature". In fact, subsequent field drydown of the affected grain will occur fairly normally relative to their immature stage of development (Hicks, 2004). The appearance of the dead plant tissue gives the illusion that field drydown was slowed by the damage from the hail or frost/freeze.

Corny Trivia: Grain in fields severely damaged or killed by severe stresses during the grain filling period will always reach physiological maturity (kernel black layer). The significant reduction or complete cessation of photosynthate availability due to damaged or dead plants will eventually lead to the death and collapse of the placental tissue at the tips of kernels that then develops into the so-called "black layer."

Hybrid Variability for Field Drydown

Hybrid variability for the rate of grain moisture loss during post-maturity drydown and the eventual grain moisture content at harvest are of great interest to grower and seed industry alike. Growers desire hybrids with superior yielding ability (maximum gross income) that also dry very quickly in the fall (minimum drying or grain shrinkage costs).

The seed industry uses grain moisture content data to assign relative hybrid maturity ratings on the basis of relative moisture differences among hybrids at harvest (Nielsen, 2012). Two hybrids that differ by one "day" of relative maturity will typically vary by about one half percentage point of grain moisture content (an average daily loss of moisture) if planted and harvested on the same days. Recognize that relative hybrid maturity ratings are most consistent within, not among, seed companies.

When weather conditions are favorable for rapid grain drydown, hybrids tend to dry at fairly similar rates. When weather conditions are not favorable for rapid drydown, then hybrid characteristics that influence the rate of grain drying become more important.

Researchers have identified the following traits or characteristics as ones most likely to influence grain drying in the field. The relative importance of each trait varies throughout the duration of the field drydown process and collectively, as mentioned earlier, hybrid differences for these traits are most influential when weather conditions are not conducive for rapid grain drying.

Final Trivia For Coffeeshop Conversations

Interestingly, there is little, if any, documented evidence that moisture loss occurs through the pedicel (kernel connection to the cob) of the kernel through the cob tissue. Post-maturity grain moisture loss occurs primarily by evaporative loss from the kernel itself. Research many years ago established that post-maturity moisture loss through the kernel connective tissues (placental tissues) back to the cob is essentially non-existent (Kiesselbach and Walker, 1952; Crane et al., 1959). As those tissues cease to function (associated with the onset of kernel black layer and physiological maturity), the moisture and nutritional connection between kernel and cob is essentially broken.


Related References

Cavalieri, A.J. and O.S. Smith. 1985. Grain Filling and Field Drying of a Set of Maize Hybrids Released From 1930 to 1982. Crop Sci. 25:856-860.

Coulter, Jeff. 2008. Maturity, frost, and harvest moisture considerations for corn. Minnesota Crop News, Univ of Minnesota Extension. http://blog-crop-news.extension.umn.edu/2008/09/maturity-frost-and-harvest-moisture.html. [URL accessed Sep 2018]

Crane, P.L., S.R. Miles, and J.E. Newman. 1959. Factors Associated With Varietal Differences in Rate of Field Drying in Corn. Agron. J. 51:318-320.

Elmore, Roger and Lori Abendroth. 2010. In-Field Drydown Rates and Harvest. Iowa Integrated Crop Management News, Iowa State Univ. https://crops.extension.iastate.edu/cropnews/2010/09/field-drydown-rates-and-harvest. [URL accessed Sep 2018]

Hicks, D.R. 2004. The Corn Crop – Frost and Maturity. Minnesota Crop News, Univ of Minnesota Extension.

Hicks, D.R. and H.A. Cloud. 1991. Calculating Grain Weight Shrinkage in Corn Due to Mechanical Drying. Purdue Extension Publication NCH-61 https://www.extension.purdue.edu/extmedia/nch/nch-61.html [URL accessed Sep 2018]

Kiesselbach, T. A. and Elda R. Walker. 1952. Structure of Certain Specialized Tissue in the Kernel of Corn. Am J Bot 39:561-69.

Nielsen, R.L. (Bob). 2012. Interpreting Corn Hybrid Maturity Ratings. Corny News Network, Purdue Univ. Online at http://www.kingcorn.org/news/timeless/HybridMaturity.html [URL accessed Sep 2018]

Nielsen, R.L. (Bob). 2018. Converting Wet Corn Weight to Dry Corn Weight. Corny News Network, Purdue Univ. http://www.kingcorn.org/news/timeless/WaterShrink.html [URL accessed Sep 2018]

Nielsen, R.L. (Bob). 2018. Grain Fill Stages in Corn. Corny News Network, Purdue Univ. http://www.kingcorn.org/news/timeless/GrainFill.html [URL accessed Sep 2018].

Thomison, Peter. 2017. Cool Weather and Corn Dry Down. Agronomic Crops Network, Ohio State Univ. https://agcrops.osu.edu/newsletter/corn-newsletter/2017-30/cool-weather-and-corn-dry-down [URL accessed Sep 2018].

Troyer, A.F. and W.B. Ambrose. 1971. Plant Characteristics Affecting Field Drying Rate of Ear Corn. Crop Sci. 11:529-531.
